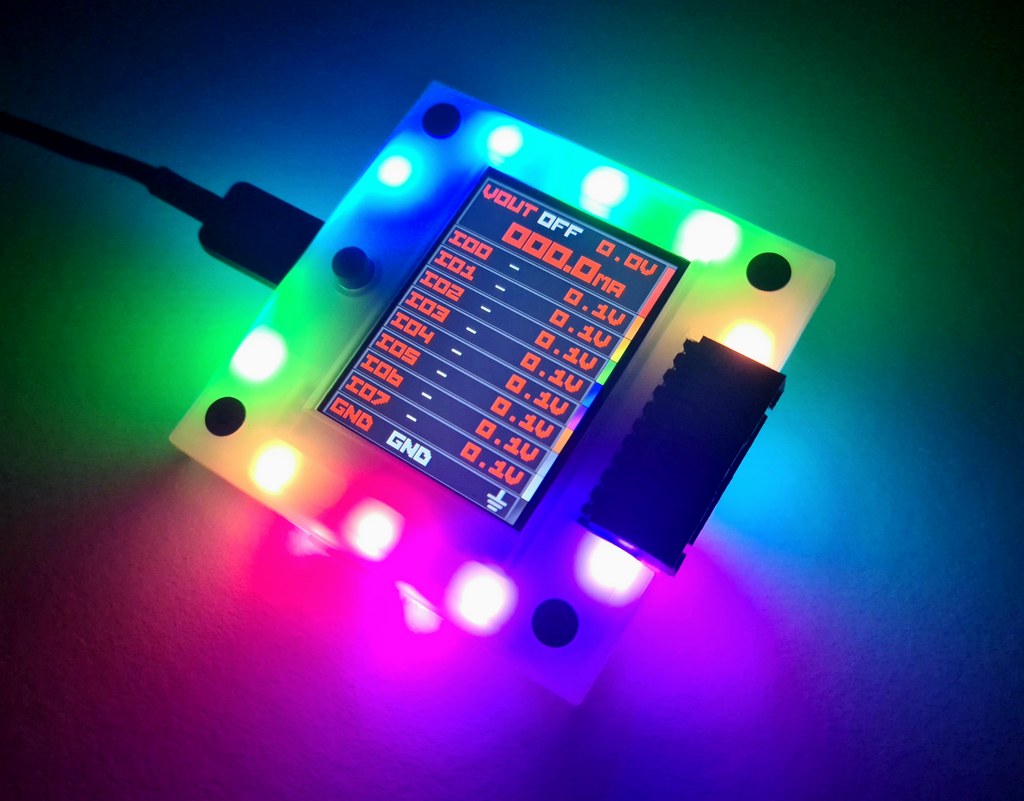

We're excited to stock the Bus Pirate 6, the latest open source electronics multitool by the wizards at Dangerous Prototypes.It works as the missing port on your computer, allowing you to connect to almost any sensor or digital device, such as SPI memory chips, I2C sensors, ARM SWD debug ports, and more, using just a couple wire connections and a simple scripting language on your computer. If you do hardware development or reverse engineering, the Bus Pirate will be a major time saver- you won't need to set up a whole development environment just to test if a sensor works the way you expect, or if you need to read the data off of some flash chip.

The Bus Pirate 6 includes all of the features from the Bus Pirate 5, and adds a major new one: the 'follow-along logic analyzer', which acts as an embedded logic analyzer to let you see what is actually happening on each pin, eliminating the need for a separate logic analyzer to troubleshoot communications issues.

It's a 'batteries included' system, with a built-in power supply, voltage monitors on all pins, and even an extra expansion port for more complex setups. Check out the latest developments in the Bus Pirate forum.

Hardware specifications:

• Based on the Raspberry Pi RP2350B, with three powerful PIO engines

• Built-in programmable power supply (1-5volts, 0-500mA, digital fuse)
• 2" color LCD display
• 8 IO pins, compatible with 1.65-5V signals

• Toggleable 10K pull-up resistors on each pin

• (new) Simultaneous digital function and follow-along logic analyzer on every pin
• 1Gbit onboard NAND flash
• 18 RGB LEDs
• Professional injection molded enclosure

• Customizable button cap

• Product version: Rev2
• Compatible with all Bus Pirate 5 modules

Please note: The base version of the Bus pirate 6 doesn't include cables!

Some accessories you might like:

• Bus Pirate 6 Bundle: Get the base unit and all accessories, and save!
•  Bus Pirate 5 Probe Cable Set: color coded, labeled probe leads and custom milled breadboard pins.
•  Bus Pirate 5 Premium Auxiliary Cable Set: color coded auxiliary, splitter, and jumper cables made of high quality silicone coated wire
• KF141 right-angle quick connector

• Bus Pirate SPI flash adapter bundle: Handy adapters for probing SPI flash chips

• Bus Pirate 5 mini/micro/nano SIM and Smart IC card adapter: Probe SIM and smart cards
• Bus Pirate 5 Infrared RX/TX IR Toy: Interface with most common Infrared remotes/devices
